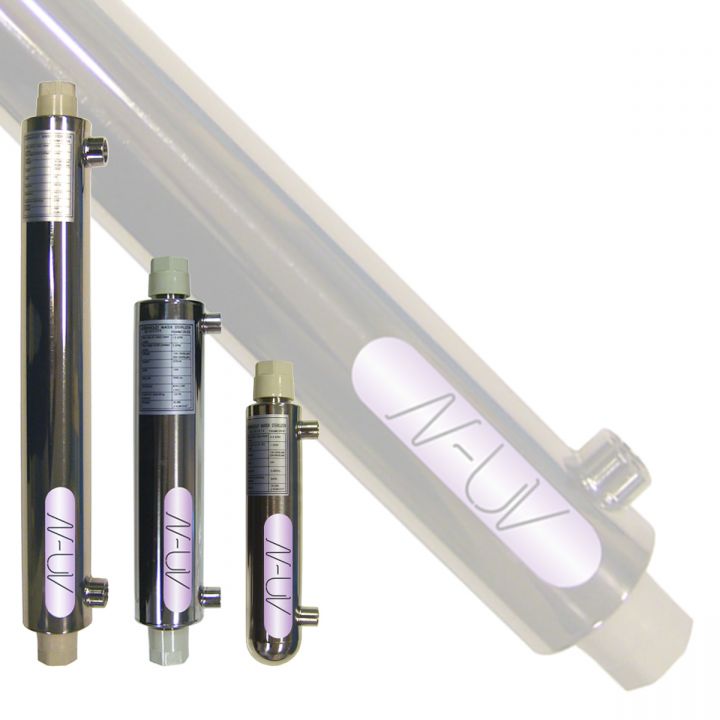

N-UV UV Steriliser Systems

The N-UV range of stainless steel ultraviolet steriliser systems offer a great balance between price and performance, retaining the CE ratings and pressure ratings normally offered by more expensive systems.

The range consists of 5 systems from 6 watts (2 ltrs/min) to 39 watts (46 ltrs/min). The 3 higher capacity systems in the range come with the added benefit of a lamp failure alarm, a unique feature amongst UV systems in this price bracket.

Read more
Grouped product items
Name Lamp Power (Watts) Max. Flow Port Size Port Type Price Availability Qty

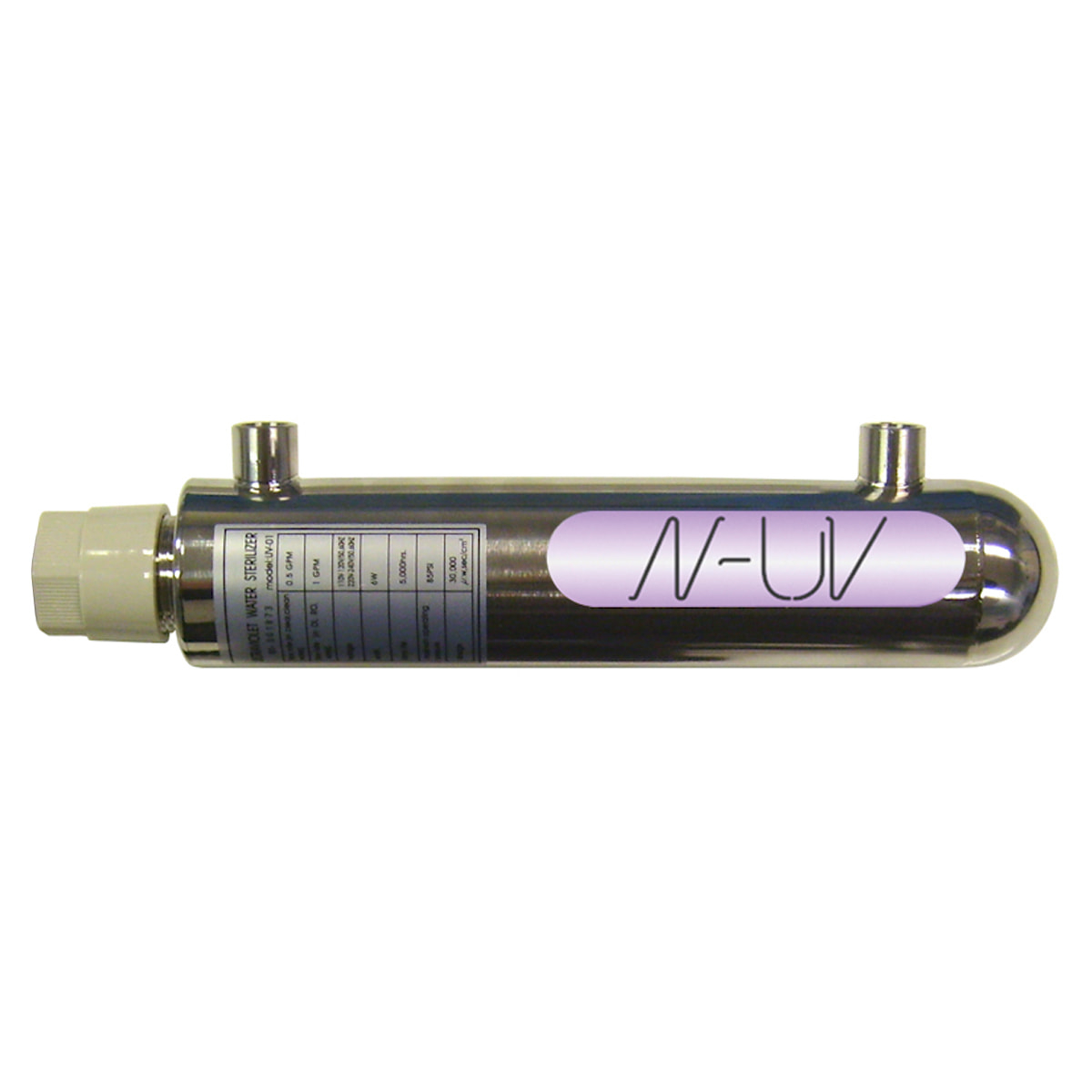

Code ACNUVS6
6 2.0 lpm / 0.53 gpm (US Gallons) 1/4" NPT Female
£192.78
In stock
Add to Favourites

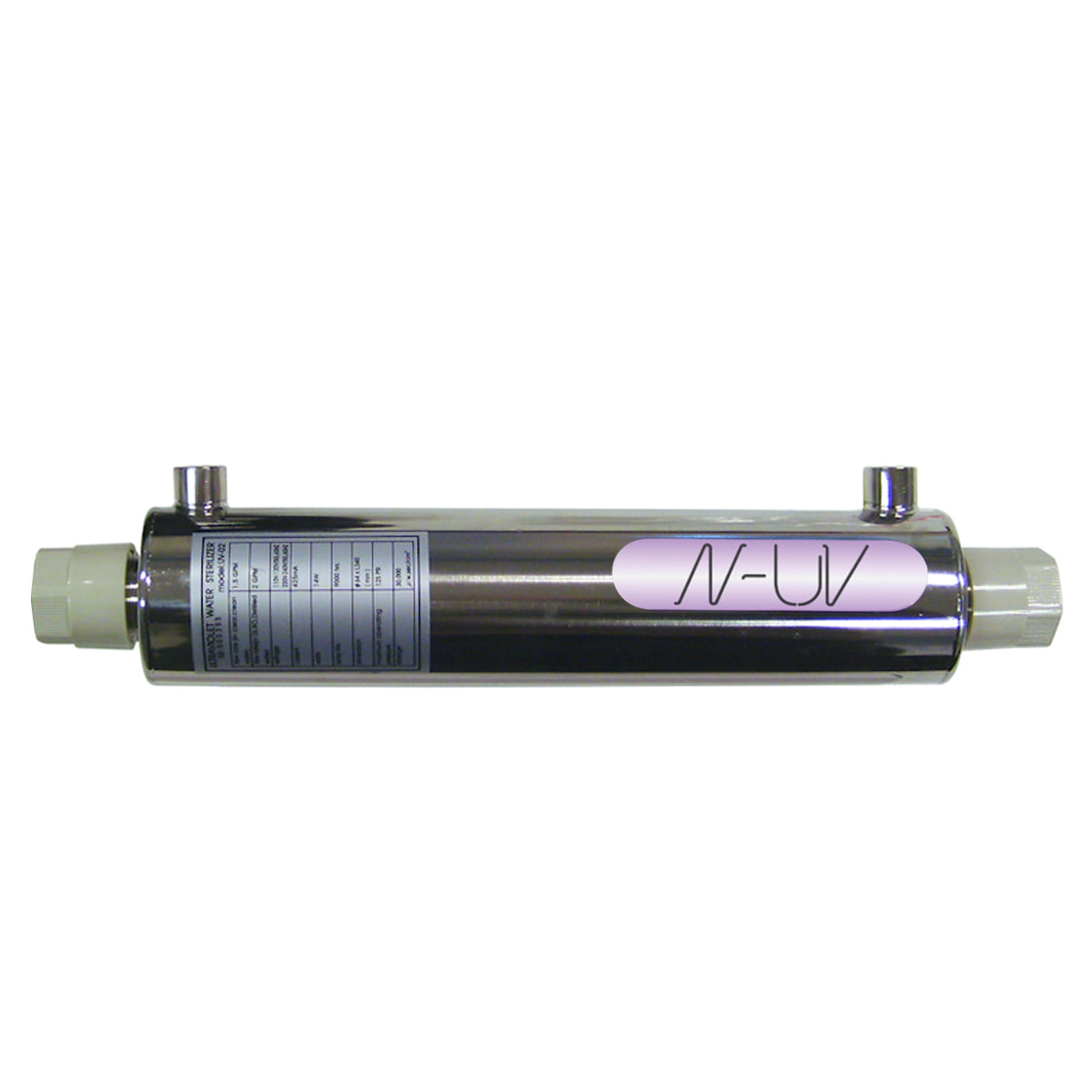

Code ACNUVS14
14 6.0 lpm / 1.59 gpm (US Gallons) 1/4" NPT Female
£324.23
In stock
Add to Favourites

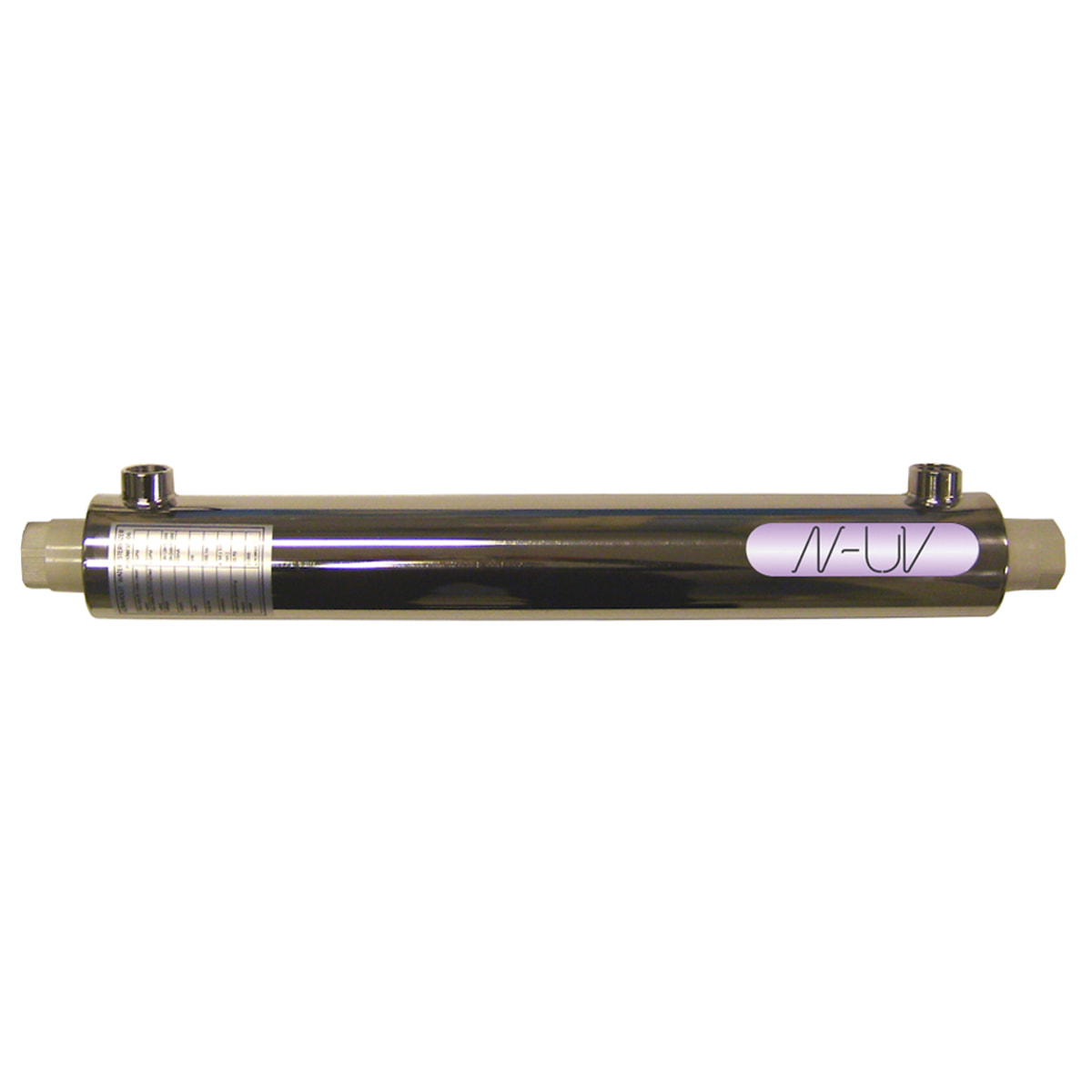

Code ACNUVS24
24 16.0 lpm / 4.23 gpm (US Gallons) 1/2" NPT Female
£436.94
Stock Warning
Add to Favourites

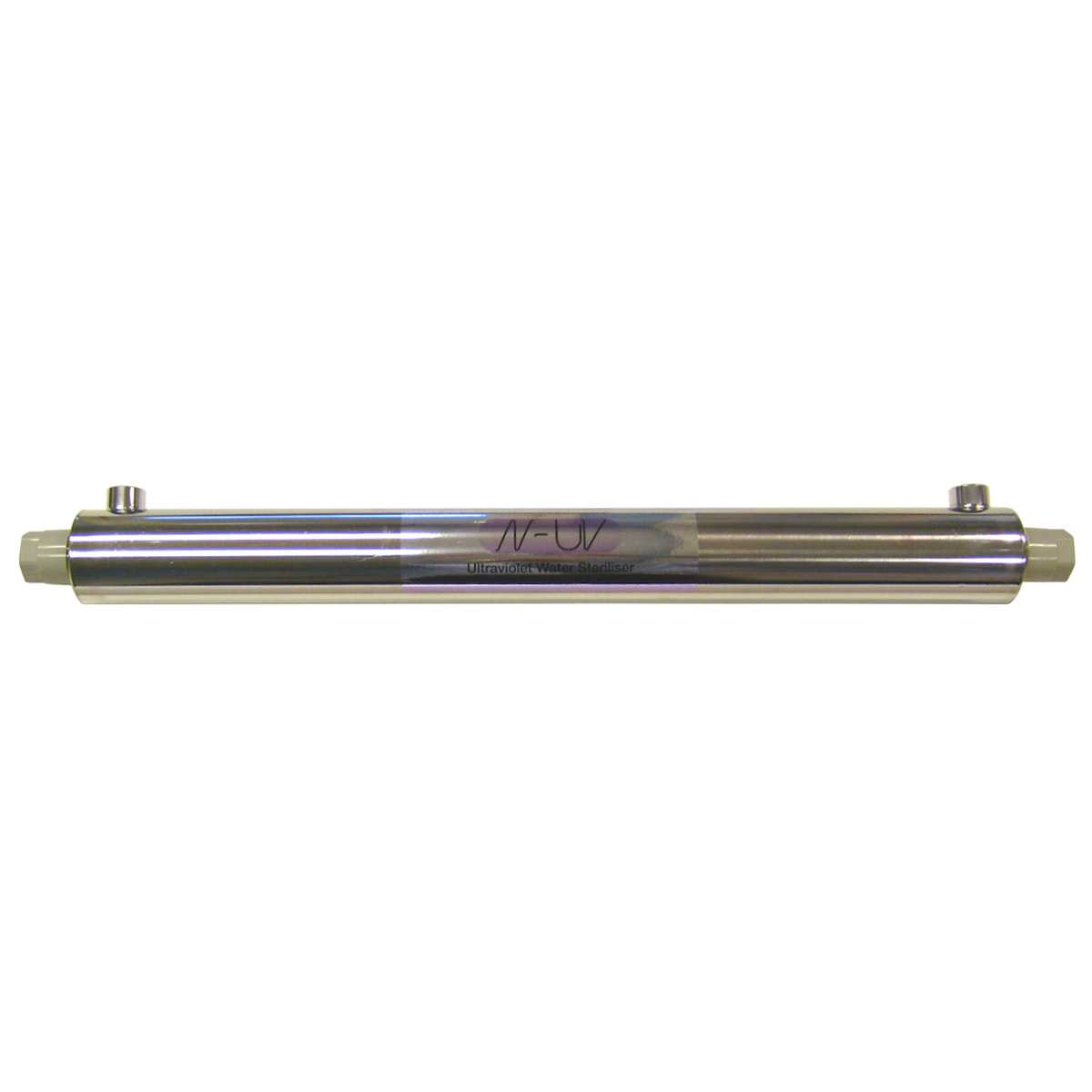

Code ACNUVS32
32 23.0 lpm / 6.08 gpm (US Gallons) 1/2" NPT Female
£604.16
In stock
Add to Favourites

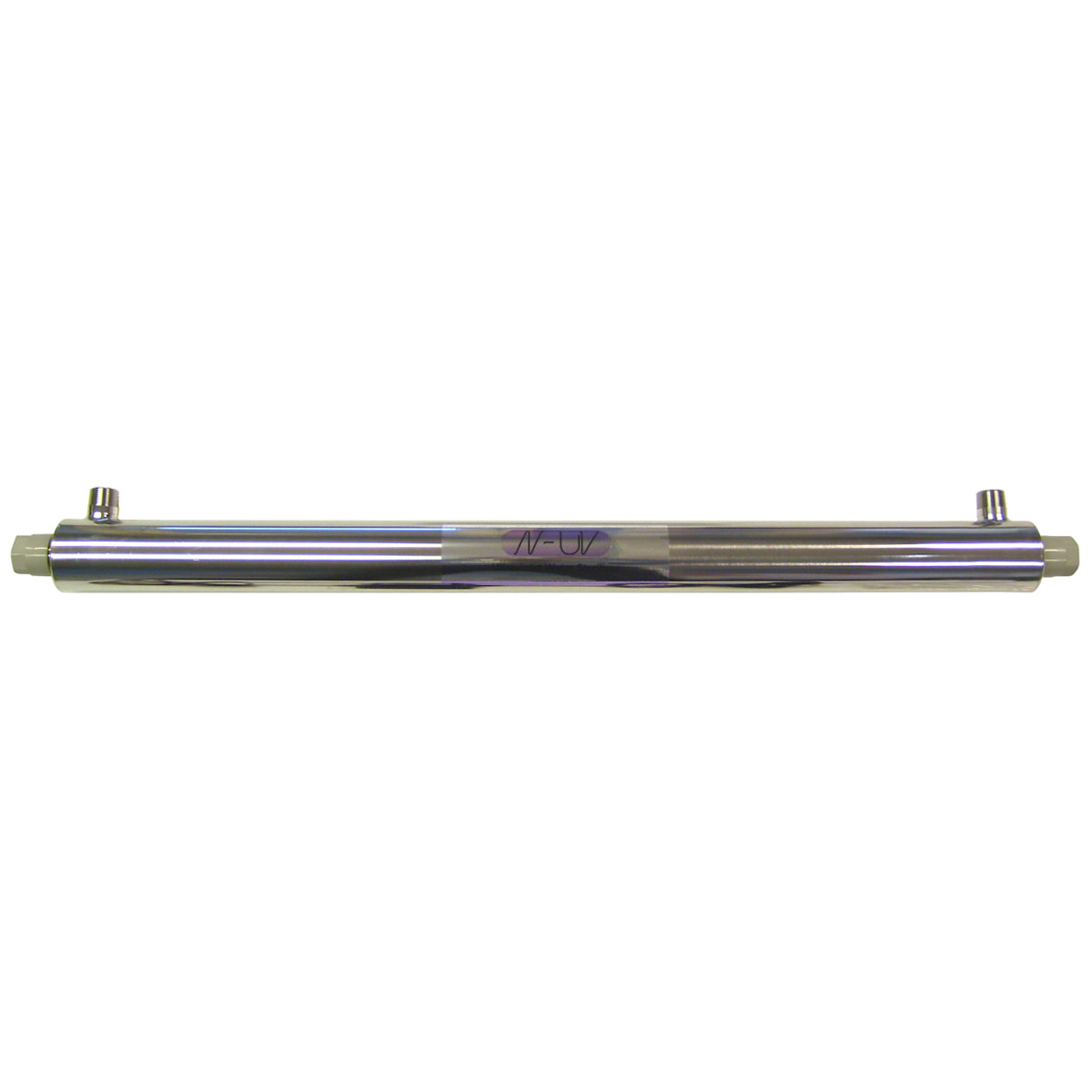

Code ACNUVS39
39 46.0 lpm / 12.15 gpm (US Gallons) 1/2" NPT Female
£1,037.95
In stock
Add to Favourites
More Information
Brand N-UV
Overall Dimensions METRIC Chamber ACNUVS6 - 260mm (l) x 51mm (dia) ACNUVS14 - 340mm (l) x 64mm (dia) ACNUVS24 - 512mm (l) x 64mm (dia) ACNUVS32 - 680mm (l) x 64mm (dia) ACNUVS39 - 900mm (l) x 64mm (dia) Control Box ACNUVS6 - 125mm (l) x 35mm (w) x 52mm (d) ACNUVS14 - 125mm (l) x 35mm (w) x 52mm (d) ACNUVS24 - 104mm (l) x 30mm (w) x 58mm (d) ACNUVS32 - 104mm (l) x 30mm (w) x 58mm (d) ACNUVS39 - 104mm (l) x 30mm (w) x 58mm (d) IMPERIAL Chamber ACNUVS6 - 10.24" (l) x 2.01" (dia) ACNUVS14 - 13.39" (l) x 2.52" (dia) ACNUVS24 - 20.16" (l) x 2.52" (dia) ACNUVS32 - 26.77" (l) x 2.52" (dia) ACNUVS39 - 35.43" (l) x 2.52" (dia) Control Box ACNUVS6 - 4.92" (l) x 1.38" (w) x 2.05" (d) ACNUVS14 - 4.92" (l) x 1.38" (w) x 2.05" (d) ACNUVS24 - 4.09" (l) x 1.18" (w) x 2.28" (d) ACNUVS32 - 4.09" (l) x 1.18" (w) x 2.28" (d) ACNUVS39 - 4.09" (l) x 1.18" (w) x 2.28" (d)
Box / Bag Quantity (For Bulk Buy) 1
Voltage 220 VAC
Chamber Construction Stainless Steel
Control Box Construction Plastic
Lamp Life 9000 Hours (Over 1 Years Continuous Use)
Replacement Lamp Code/s
  • ACNUVS6 - ACNUVL6
  • ACNUVS14 - ACNUVL14
  • ACNUVS24 - ACNUVL24
  • ACNUVS32 - ACNUVL32
  • ACNUVS39 - ACNUVL39
Replacement Quartz Sleeve Code/s
  • ACNUVS6 - ACNUVQ6
  • ACNUVS14 - ACNUVQ14
  • ACNUVS24 - ACNUVQ24
  • ACNUVS32 - ACNUVQ32
  • ACNUVS39 - ACNUVQ39
Audible Lamp Fail Alarm (Group)
  • ACNUVS6 - No
  • ACNUVS14 - No
  • ACNUVS24 - Yes
  • ACNUVS32 - Yes
  • ACNUVS39 - Yes

Product Description

N-UV UV sterilisers are economically priced range of stainless steel system, which are available with flow rates ranging from 2 to 46 litres per minute.

This high quality system has a host of features, including:

  • Stainless steel chamber construction
  • Reliable long life UV lamps
  • Audible lamp fail alarm on some models

Please be aware that the use of pre-filter systems is recommended when installing a UV system to remove particles and to treat the water to make it palatable.

If you require any advice, please don't hesitate to get in touch with our highly trained staff who can advise on the appropriate system to meet your specific requirements.

*UV systems have a stated flow rate based on feedwater transmission of 95%. On single pass applications (including drinking water) where the water clarity is less than stated, or the potential flow rate could exceed the recommended maximum flow rate, the installer should fit a suitable flow regulator.
