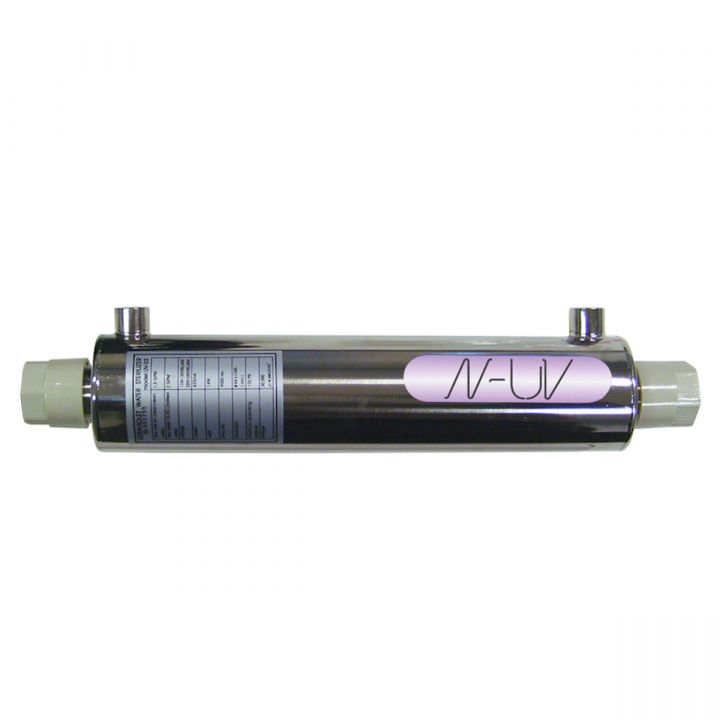

N-UV UV Steriliser - 6 ltrs/min - 1/4" NPT Female Ports


Great value UV steriliser, which benefits from a stainless steel chamber for better all-round performance.

Features a 1/4" NPT female ports, a 14 watt lamp and maximum flow of 6 litres of water per minute*.

Read more
In stock
More Information
Brand N-UV
Overall Dimensions METRIC Chamber - 340mm (l) x 64mm (dia) Control Box - 125mm (l) x 35mm (w) x 52mm (d) IMPERIAL Chamber - 13.39" (l) x 2.52" (dia) Control box - 4.92" (l) x 1.38" (w) x 2.05" (d)
Max. Working Pressure 8.0 bar / 116 psi
Box / Bag Quantity (For Bulk Buy) 1
Port Size 1/4"
Port Type NPT Female
Max. Flow 6.0 lpm / 1.59 gpm (US Gallons)
Voltage 220 VAC
Lamp Power (Watts) 14
Chamber Construction Stainless Steel
Control Box Construction Plastic
Lamp Life 9000 Hours (Over 1 Years Continuous Use)
Replacement Lamp Code/s ACNUVL14
Replacement Quartz Sleeve Code/s ACNUVQ14
Audible Lamp Fail Alarm No

Product Description

Altough N-UV UV sterilisers come in at a lower cost point compared to other systems we sell, they still retain CE and pressure ratings normally offered by more expensive system.

Features include:

  • High quality stainless steel chamber
  • 14 watt lamp
  • Max. flow of 6 litres/min
  • 1/4" NPT female inlet and outlet
  • Reliable long life UV lamp

UV steriliser systems are only designed to kill bacteria in water and should be used as part of a larger water treatment system. They should be integrated into a system comprising the appropriate water filters to remove particles and to treat the water to make it palatable.

For any advice, please don't hesitate to get in touch with our team of expects who can advise on the right system for your specific requirements.

*UV systems have a stated flow rate based on feedwater transmission of 95%. On single pass applications (including drinking water) where the water clarity is less than stated, or the potential flow rate could exceed the recommended maximum flow rate, the installer should fit a suitable flow regulator.
