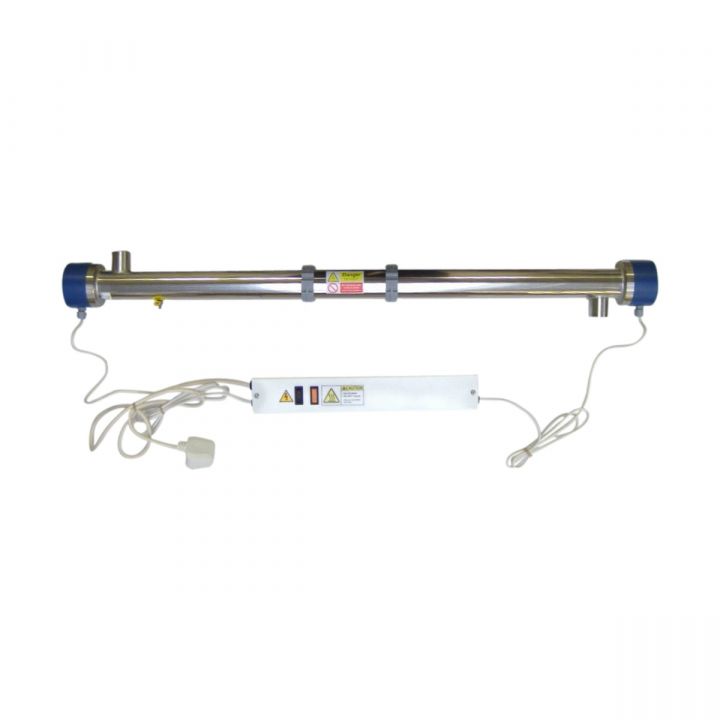

AC UV Steriliser System - 30 ltrs/min - 3/4" BSPF Ports


55 watt ACUV stainless steel UV disinfection system, which is capable of a maximum flow rate of 30 litres per minute*.

WRAS approved for use on drinking water systems.

Read more
In stock
More Information
Brand Aqua Cure
Overall Dimensions METRIC Chamber - 960mm (l) x 120mm (w) x 90mm (d) Control Box - 350mm (l) x 60mm (w) x 60mm (d) IMPERIAL Chamber - 37.80" (l) x 4.72" (w) x 3.54" (d) Control Box - 13.78" (l) x 2.36" (w) x 2.36" (d)
Max. Working Pressure 10.0 bar / 145 psi
Box / Bag Quantity (For Bulk Buy) 1
Port Size 3/4"
Port Type BSP Female
Max. Flow 30.0 lpm / 7.93 gpm (US Gallons)
Approvals & Certifications WRAS Approved
Voltage 220-240 VAC, 50/60 Hz Single Phase
Lamp Power (Watts) 55
Chamber Construction Stainless Steel
Control Box Construction Epoxy Coated Mild Steel
Lamp Life 8760 Hours (1 Years Continuous Use)
Replacement Lamp Code/s ACUV55

Product Description

Quality UV steriliser system with a number of great features, including:

  • WRAS approval
  • Stainless steel chamber
  • Epoxy coated mild steel control box
  • 55 watt lamp
  • Max. flow of 30 litres/min
  • 3/4" BSP female inlet and outlet
  • Long life / high reliability UV lamp
  • Robust design

Please note that UV systems only kill bacteria in water and should be used in conjunction with other water treatment systems. They should be incorporated into a system comprising the appropriate water filters to remove particles and to treat the water to make it palatable.

If you require any advice, please don't hesitate to get in touch with our highly trained staff who can advise on the appropriate system to meet your specific requirements.

*UV systems have a stated flow rate based on feedwater transmission of 95%. On single pass applications (including drinking water) where the water clarity is less than stated, or the potential flow rate could exceed the recommended maximum flow rate, the installer should fit a suitable flow regulator.
