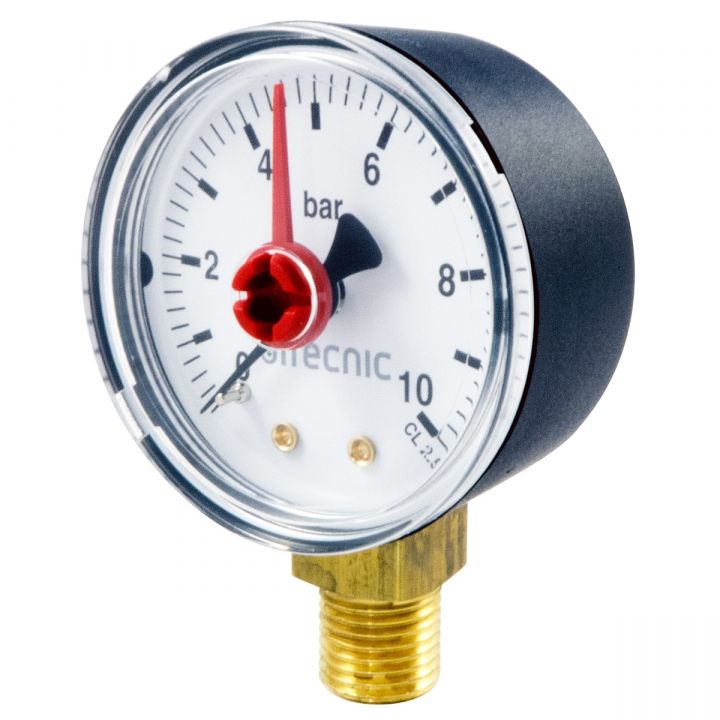

Pressure Gauge (Bottom Entry) - 1/4" Male
Bottom entry pressure gauge suitable for both domestic and commercial use.
Pressure range of 0 to 10 bar with a red indicator pointer and 1/4" BSP Male connection.
|Max. Water Temp||90°C / 194°F|
|Overall Dimensions||METRIC 69.5mm (h) x 50mm (w) x 27.5mm (d) IMPERIAL 2.74" (h) x 1.97" (w) x 1.08" (d)|
|Connections (If all are identical)||1/4" BSP|
|Pressure Range||0 to 10 Bar|
