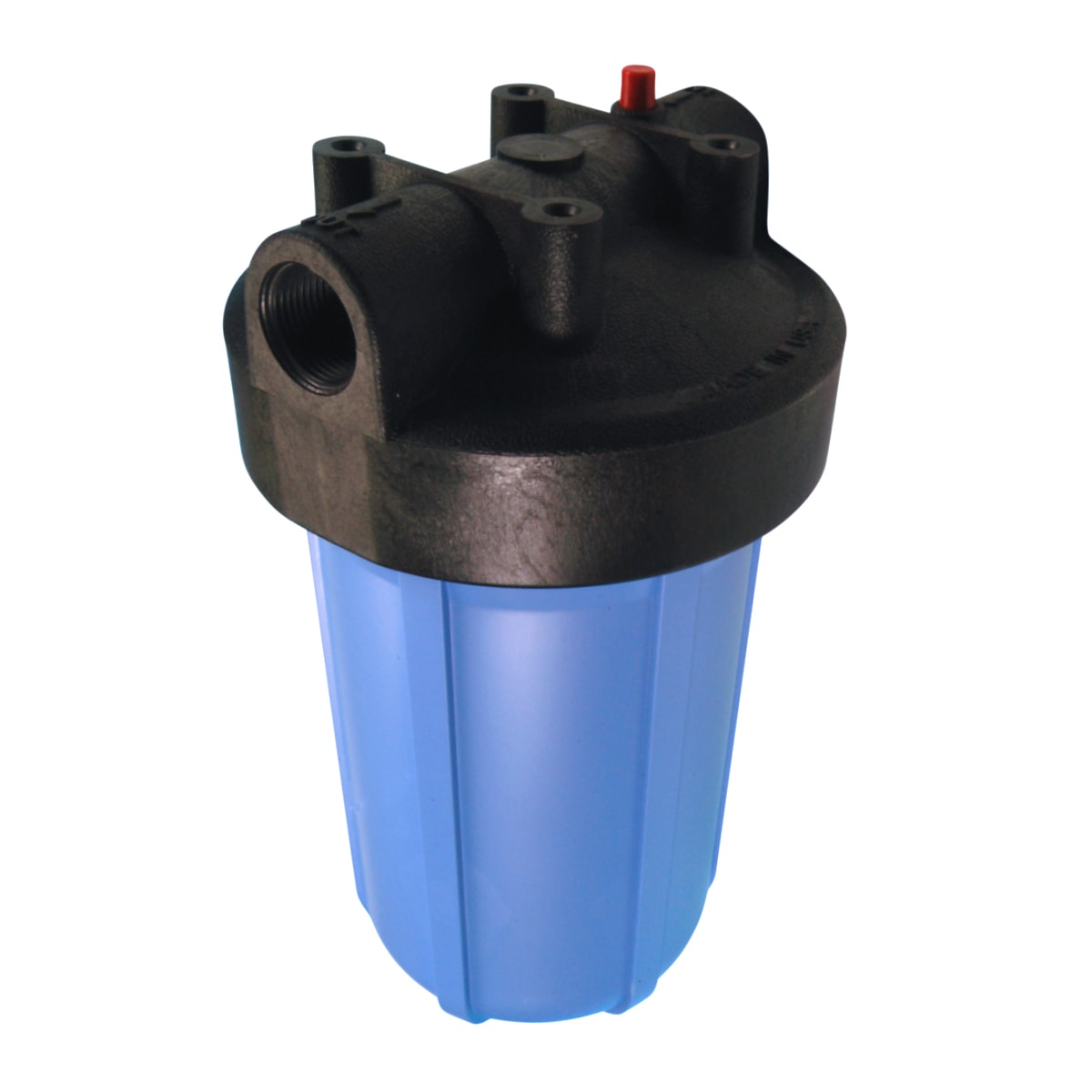

Pentek 10" Jumbo (Big Blue) Filter Housings

Pentek 10" Jumbo filter housings are high quality extra-large housings, which allow for greater capacity, reducing both the number of vessels required and cartridge change-out frequency.

All heads feature a pressure release / bleed button and are available with either 3/4", 1" or 1 1/2" ports.

More Information
Brand Pentek
Max. Water Temp 38°C / 100°F
Overall Dimensions METRIC AC600P - 333mm (h) x 184mm (w) AC600PA - 333mm (h) x 184mm (w) AC600PB - 346mm (h) x 184mm (w) IMPERIAL AC600P - 13.125" (h) x 7.25" (w) AC600PA - 13.125" (h) x 7.25" (w) AC600PB - 13.625" (h) x 7.25" (w)
Min. Water Temp 4°C / 39°F
Max. Working Pressure 6.9 bar / 100 psi
Box / Bag Quantity (For Bulk Buy) 6
Integral Bracket No
Mounting Bosses Yes
Pressure Release Yes
Meter Mount No
Port Type BSP
Filter Length 10"
