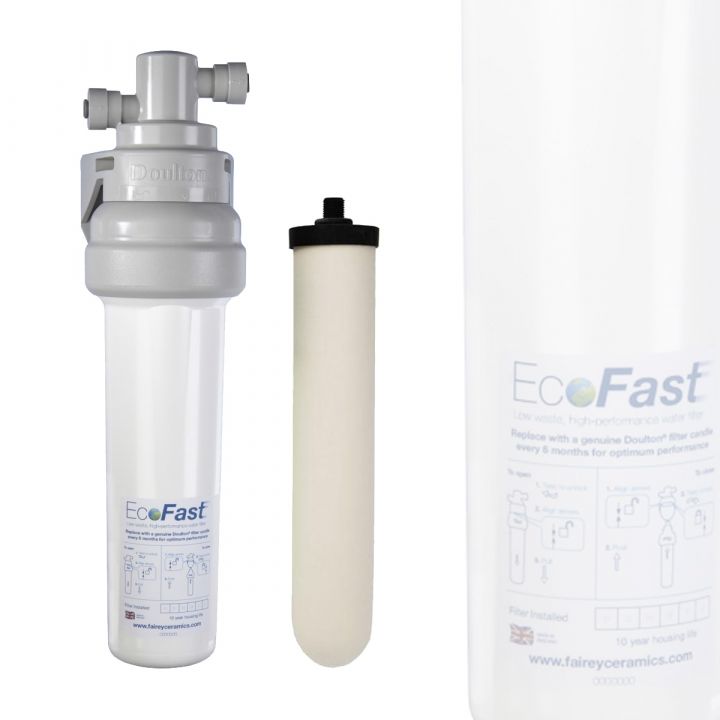

Doulton EcoFast housings are a high quality quick change housing system designed for 10" long x 2" diameter short mount ceramic filter candles.

The system is available with 1/4" and 3/8" push fit connections with the 1/4" version also available with a 10" Supercarb filter candle included.

Read more

Products

Name Port Size Port Type Price Availability Qty
Doulton EcoFast Housing - 1/4" PF

Doulton EcoFast Housing - 1/4" PF

Code: W9330230

Port Size 1/4"
Port Type Push Fit
1/4" Push Fit
£96.53 Inc. VAT
Availability: In stock
£96.53 Inc. VAT
Doulton EcoFast Housing - 3/8" PF

Doulton EcoFast Housing - 3/8" PF

Code: W9330222

Port Size 3/8"
Port Type Push Fit
3/8" Push Fit
£96.53 Inc. VAT
Availability: In stock
£96.53 Inc. VAT
Doulton EcoFast Housing with Supercarb Candle - 1/4" PF

Doulton EcoFast Housing with Supercarb Candle - 1/4" PF

Code: W9330235

Port Size 1/4"
Port Type Push Fit
1/4" Push Fit
£100.74 Inc. VAT
Availability: In stock
£100.74 Inc. VAT
Doulton EcoFast Housing with Ultracarb Candle - 1/4" PF

Doulton EcoFast Housing with UltraCarb Candle - 1/4" PF

Code: W9330236

Port Size 1/4"
Port Type Push Fit
1/4" Push Fit
£105.96 Inc. VAT
Availability: In stock
£105.96 Inc. VAT

In the trade? Apply for a
trade account for big discounts

Specifications

Specifications

Brand Doulton
Filter Length 10"
Colour / Finish White
Meter Mount No
Pressure Release No
Valve in Head Yes
Mounting Bosses No
Integral Bracket Yes
Min. Water Temp 5°C / 41°F
Max. Water Temp 30°C / 86°F
Min. Working Pressure 1.4 bar / 20 psi
Max. Working Pressure 6.0 bar / 87 psi
Overall Dimensions METRIC

345mm (h) x 105mm (w)

IMPERIAL

13.60" (h) x 4.15" (dia)

Box / Bag Quantity (For Bulk Buy) 12
Approvals & Certifications WRAS Approved

Data Sheets

Product Description

EcoFast is a quick change, auto shut-off environmentally friendly drinking water filter housing system, which is ideal for both commercial and domestic use.

The housing takes Doulton 10" long x 2" diameter ceramic filter candles, which are available in wide range of grades depending on what needs to be filtered from the drinking water.

  • Water supply automatically switches off with the quarter turn action of removing the filter body from the head.
  • Quick-change design aids fast, sanitary changeover of filter candles.
  • Only the filter candle needs replacing meaning up to 80% less plastic waste than other available cartridge filters.
  • Candles feature a threaded mount for quick maintenance of filter system.
  • Head has integral mounting bracket for easy installation.
  • 1/4" and 3/8" push fit connections in the head allow convenient installation in coolers or domestic applications.
  • 6 month ceramic filter life under typical operating conditions.
