Everpure Claris Filter Cartridges Range

Although we advise current Claris system users to switch to Everpure Claris Ultra for hot drinks vending, coffee machine and ice making applications, we still recommend the original Claris system for use with steam equipment, including combi-ovens.

Ideal for adjustable scale control and available in 5 cartridge sizes with capacities ranging from 1,703 litres to 13,200 litres based on an influent water hardness of 180 ppm with standard bypass settings.

Read more

Consider this alternative

Grouped product items
Name Capacity Flow Rate Price Availability Qty

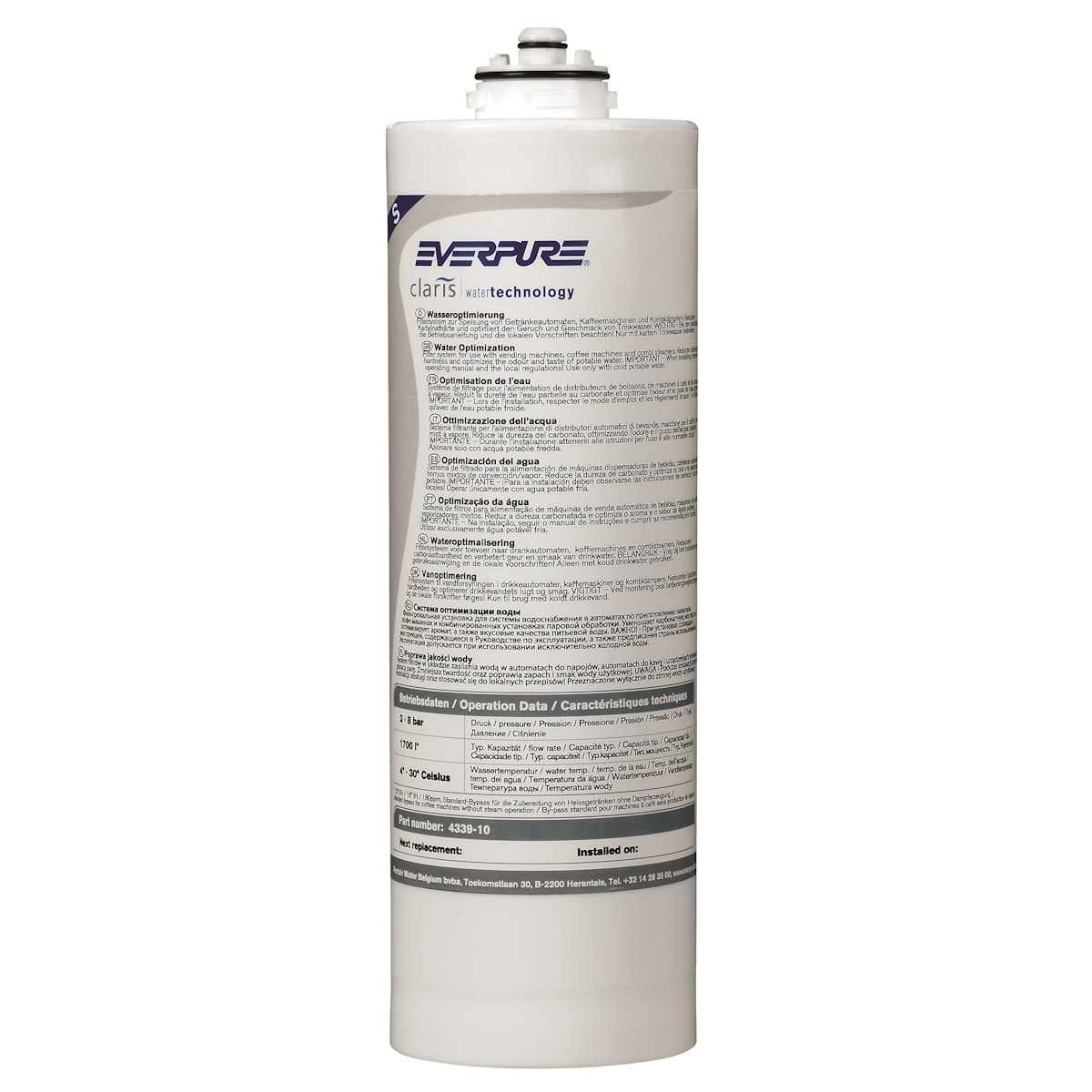

Code EVCLS
1.9 lpm / 0.5 gpm (US Gallons)
£90.19
In stock
Add to Favourites

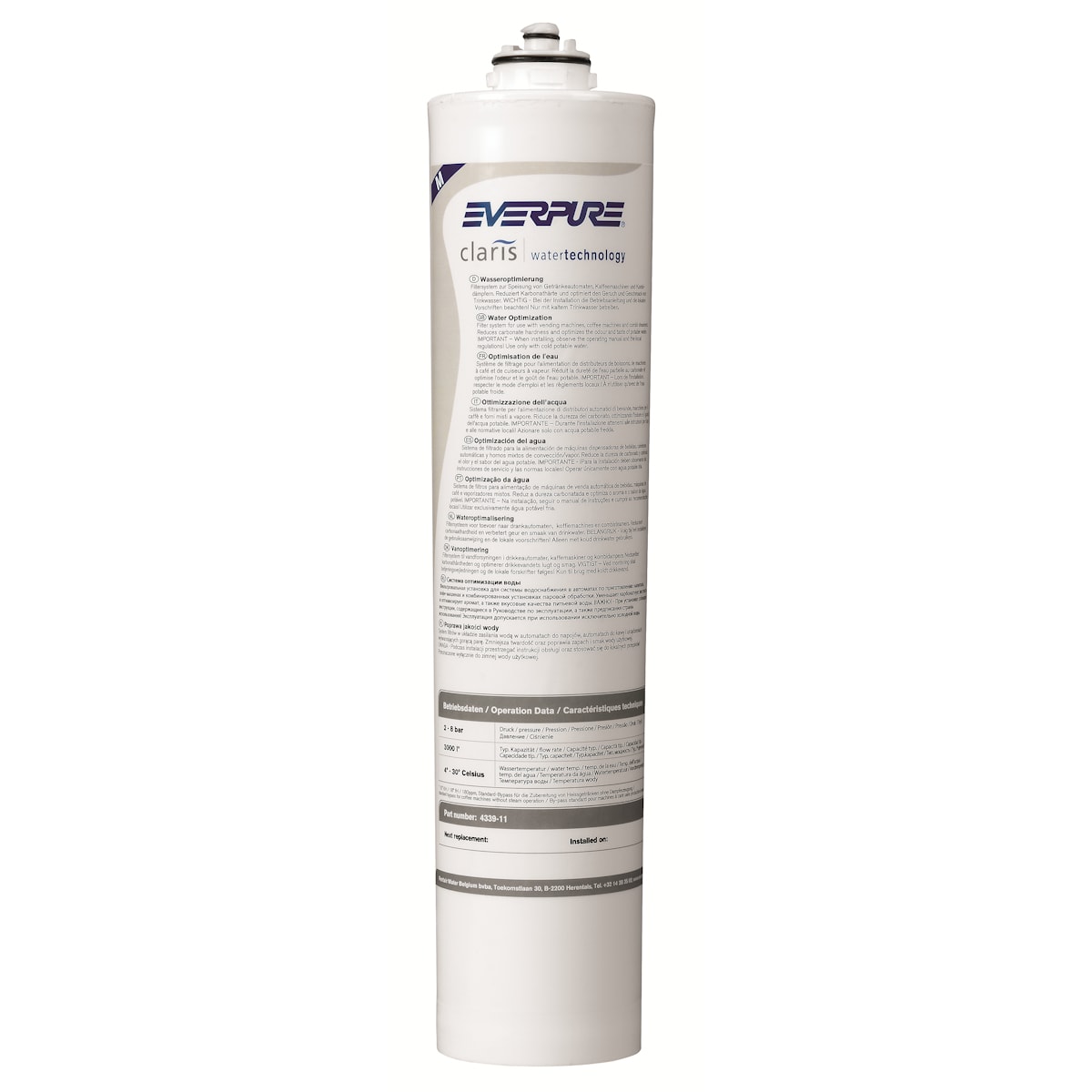

Code EVCLM
1.9 lpm / 0.5 gpm (US Gallons)
£121.16
In stock
Add to Favourites

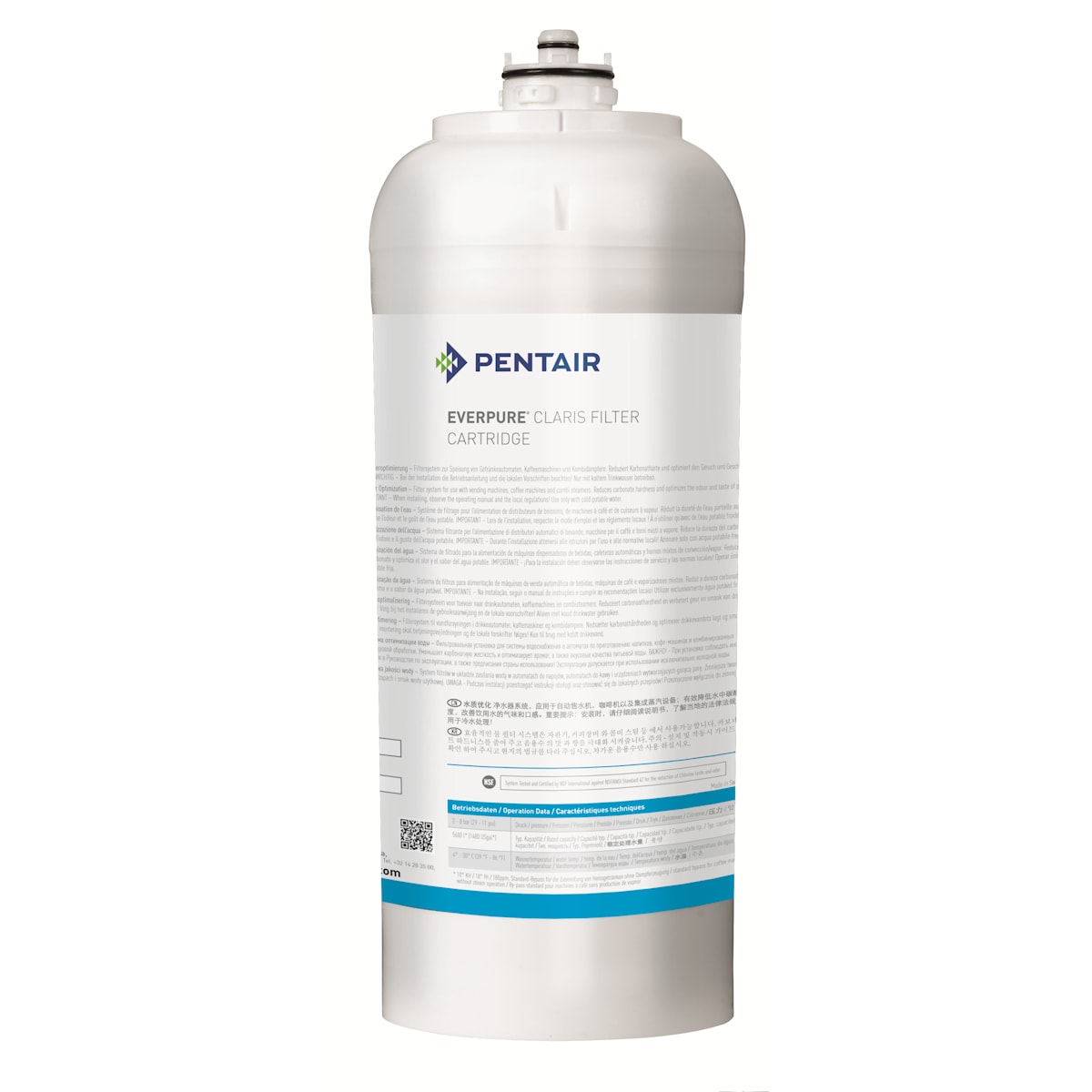

Code EVCLL
3.8 lpm / 1.00 gpm (US Gallons)
£166.19
Stock Warning
Add to Favourites

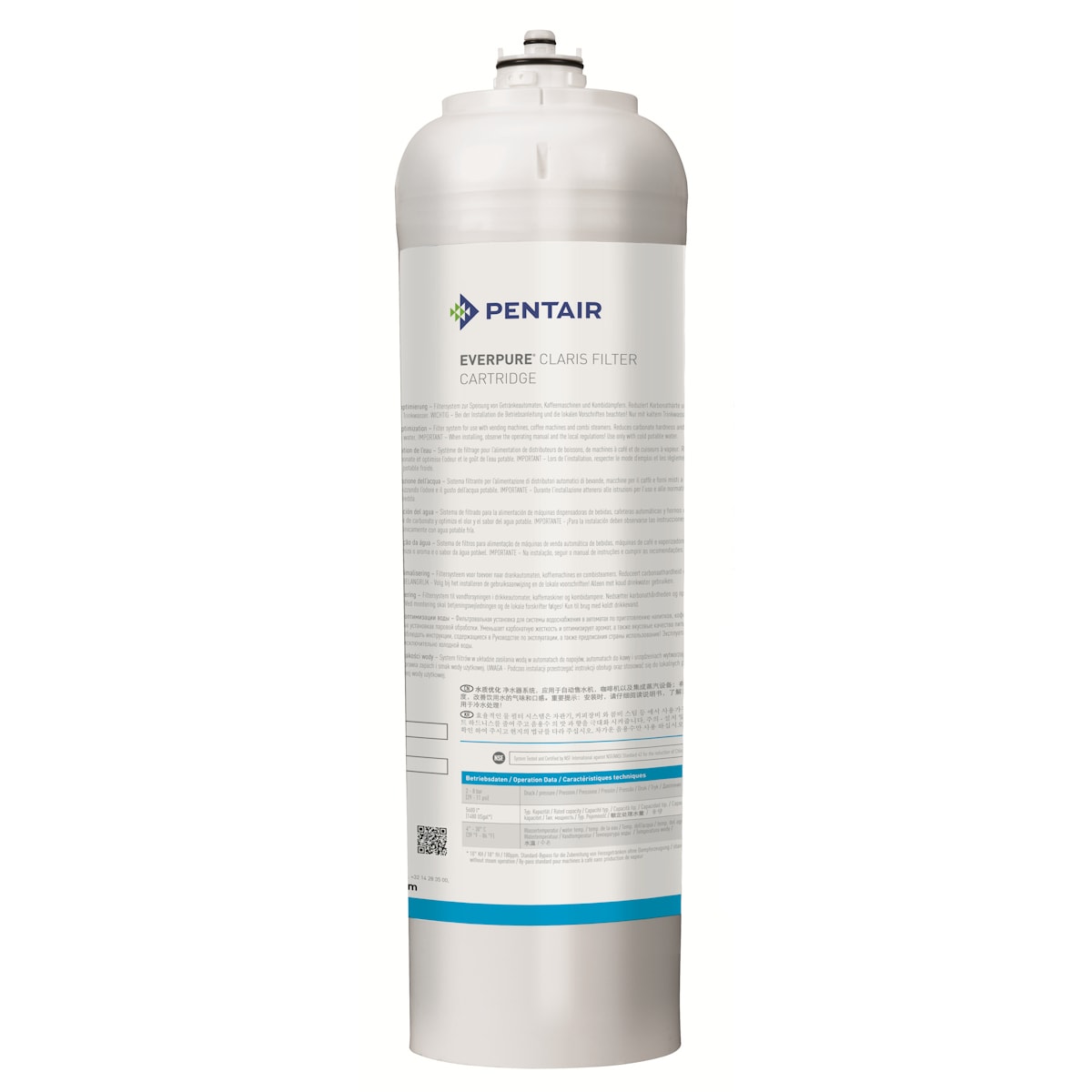

Code EVCLXL
3.8 lpm / 1.00 gpm (US Gallons)
£202.92
In stock
Add to Favourites

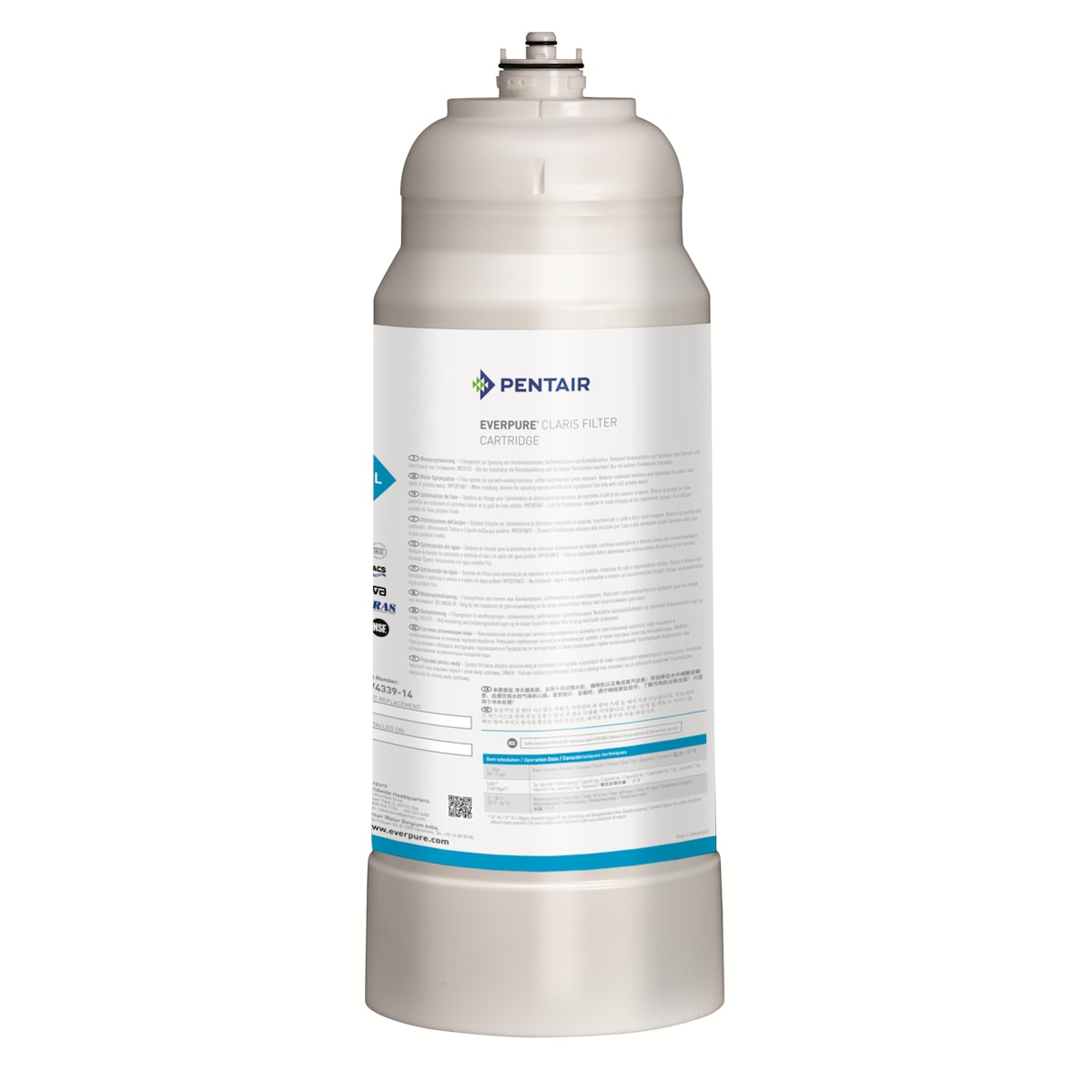

Code EVCLXXL
3.8 lpm / 1.00 gpm (US Gallons)
£313.52
Stock Warning
Add to Favourites
More Information
Brand Everpure Claris
Micron Rating 5
Filter Type Carbon Block
Max. Water Temp 30°C / 86°F
Overall Dimensions METRIC Small - 315mm (h) x 94mm (dia) Medium - 426mm (h) x 94mm (dia) Large - 360mm (h) x 136mm (dia) XL - 471mm (h) x 136mm (dia) XXL - 471mm (h) x 175mm (dia) IMPERIAL Small - 12.39" (h) x 3.74" (dia) Medium - 16.78" (h) x 3.74" (dia) Large - 14.18" (h) x 5.35" (dia) XL - 18.56" (h) x 5.35" (dia) XXL- 18.56" (h) x 6.89" (dia)
Filter / Cartridge Lifetime Up to specified capacity or 12 months, which ever comes first.
Min. Water Temp 4°C / 39°F
Min. Working Pressure 2.0 bar / 29 psi
Max. Working Pressure 8.0 bar / 116 psi
Specification Notes *Capacities are based OCS / Coffee and on influent water hardness of 180 ppm with standard bypass settings. For steam applications and other hardness levels consult installation and operations guide capacity and bypass settings charts.

Product Description

The Everpure Claris range of filter cartridges prevent limescale formation for reduced equipment maintenance / service costs and are highly recommended for use with steam equipment such as combi ovens

The original Claris has been approved by a number of catering equipment manufacturers and their service partners for use on convection ovens, some of which have now been using the product with extremely positive results for a number of years.

All cartridges offer a 5 stage filtration process, which includes:

  1. Prefiltration
  2. Carbonate hardness adjustment
  3. Fine filtration
  4. Highly effective carbon block
  5. Solid membrane filter

The Claris system's filter head (sold separately) contains a unique DuoBlend™ bypass valve which, unlike some other systems, is not affected by flow rate.

The flexibility allowed by the DueBlend™ valve not only makes the system suitable for many different types of equipment (from coffee and vending machines to steam ovens) but also allows users to compensate for regional variations in water hardness.

Used in conjunction with either Claris or Claris Ultra the DuoBlend™ technology can help solve both scale and corrosion issues.
