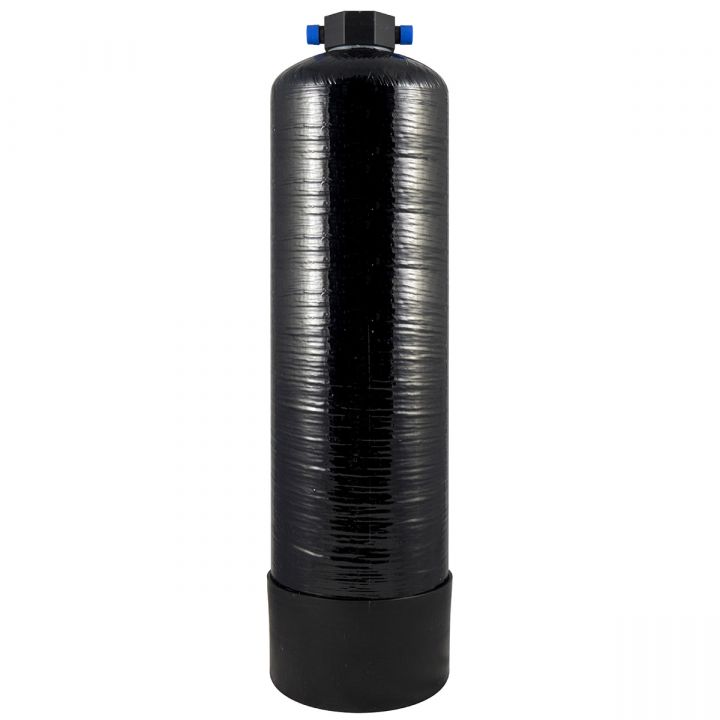

BanHard CTU System - 30 Litre - 25,590 Litre Capacity
30 litre BanHard calcium treatment unit (CTU), which has a capacity of 25,590 litres*, integral bypass and 3/4" BSP inlet / outlet connections.
Designed to reduce limescale and improve taste of incoming of incoming feed water.
|Inlet / Outlet Size||3/4" BSP|
|Max. Water Temp||35°C / 95°F|
|Overall Dimensions||METRIC 950mm (h) x 263mm (d) IMPERIAL 37.40" (h) x 10.35" (dia)|
|Min. Water Temp||Protect From Freezing|
|Min. Working Pressure||1.5 bar / 22 psi|
|Max. Working Pressure||6.0 bar / 87 psi|
|Specification Notes||*Capacity is based on a temporary water hardness level of 200ppm. Incoming feed alkalinity levels also affect overall capacity.|
BanHard calcium treatment units are designed to reduce limescale and improve the taste of incoming feed water. They are ideal for coffee machines, water boilers, combination ovens, vending equipment, baking overs and bulk brewers.
This 25,590 litre capacity* 2 port head model features a single inlet, single outlet and an integral bypass which allows a blend of untreated water to pass through, to improve taste, colour and odour, and increase capacity. Please note: % bypass varies according to pressure and flow rate.
The system doesn't mix carbon with the resin, which means the system can undergo regeneration, making the system more environmentally friendly. The carbon is located in the riser tube, which is the best place for polishing the water, giving maximum taste reduction.
Once a new BanHard CTU is purchased, regenerated units then become available, which are at a reduced cost compared to a new unit.
