The Grease Guardian under sink X Range of automatic grease trap and removal units trap food waste and grease and remove grease with a skimming programme.

All units have inbuilt FOG (fats, oils and grease) treatment, FOG removal and self cleaning mechanisms.

Available in 3 variants depending on your requirements.

Read more

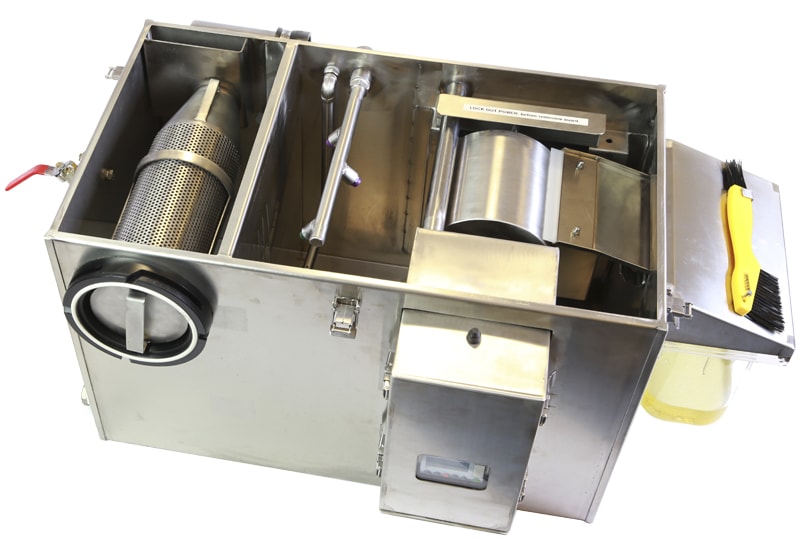

Three-stage Operation System

STAGE 1: Solids Collection

Wastewater from the kitchen is directed through the inlet of the Grease Guardian® where a removable strainer basket collects any solid debris.

STAGE 2: Grease & Oil Separation

Grease in the wastewater floats to the surface and is trapped while the clear water leaves the unit and enters the drainage system.

STAGE 3: Self Cleaning & Grease Removal

The timer-driven heating element is activated to liquefy grease, which is then removed by the skimming wheel and deposited into a portable container for recycling. Can be connected to: pot wash sinks, pre-rinse sinks, combi ovens, Chinese cookers and floor drains.

Under Sink Installation

  • Automatically separates & removes FOG (fats oils and grease), from kitchen waste water
  • Solids filtration as standard
  • Reduces pump out requirements
  • Easy to install & maintain
  • Collected waste can be recycled
  • Automatic controls
  • Approved under PDI and ASME

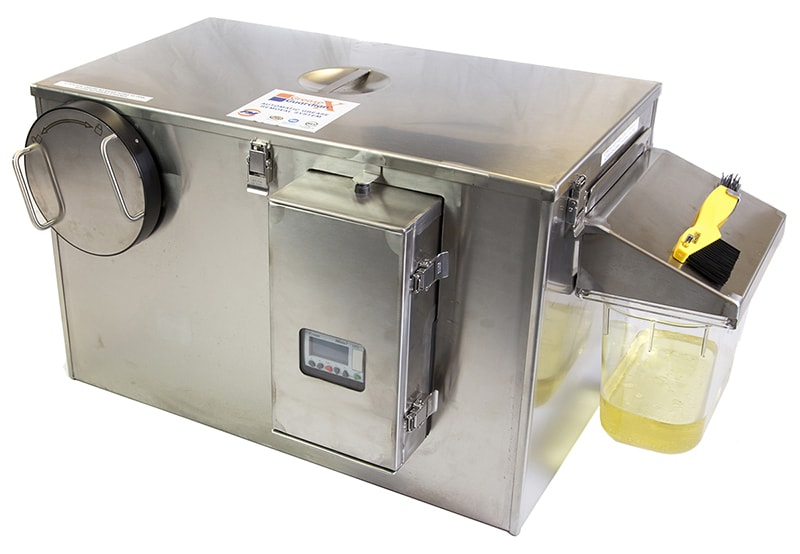

Grease Guardian Automatic Grease Trap
Grease Guardian Automatic Grease Trap

Products

Data Sheets

Name Length Height Inlet/Outlet Width Inlet Height Outlet Height Max Flow
Grease Guardian Automatic Grease Trap

X15 Grease Guardian

Code: X15

Length
788
Height
341
Inlet/Outlet
50
Width
559
Inlet Height
214
Outlet Height
85
Max Flow
0.94 l/sec
788 341 50 559 214 85 0.94 l/sec Enquire Now
Grease Guardian Automatic Grease Trap

X25 Grease Guardian

Code: X25

Length
826
Height
421
Inlet/Outlet
50
Width
559
Inlet Height
294
Outlet Height
160
Max Flow
1.58 l/sec
826 421 50 559 294 160 1.58 l/sec Enquire Now
Grease Guardian Automatic Grease Trap

X35 Grease Guardian

Code: X35

Length
1039
Height
421
Inlet/Outlet
80
Width
610
Inlet Height
282
Outlet Height
187
Max Flow
2.21 l/sec
1039 421 80 610 282 187 2.21 l/sec Enquire Now

All dimensions in mm

Specification: Automatic grease trap with inbuilt FOG treatment, FOG removal and self cleaning mechanisms. 16 Gauge 304 Stainless Steel with bright finish, 25 Watt, 230VAC; 50Hz Motor. 600 Watt Heater with Thermal Cut Out included. Logic Controller with Backlit Display. Skimming Drum is nominally capable of skimming 5 l per hour. Can be connected to pot wash sinks, pre-rinse sinks, combi ovens, Chinese cookers, floor drains and most grease producing kitchen appliances. UL, PDl, CSA, and ASME tested. Please note dimensions are subject to change without notice.
