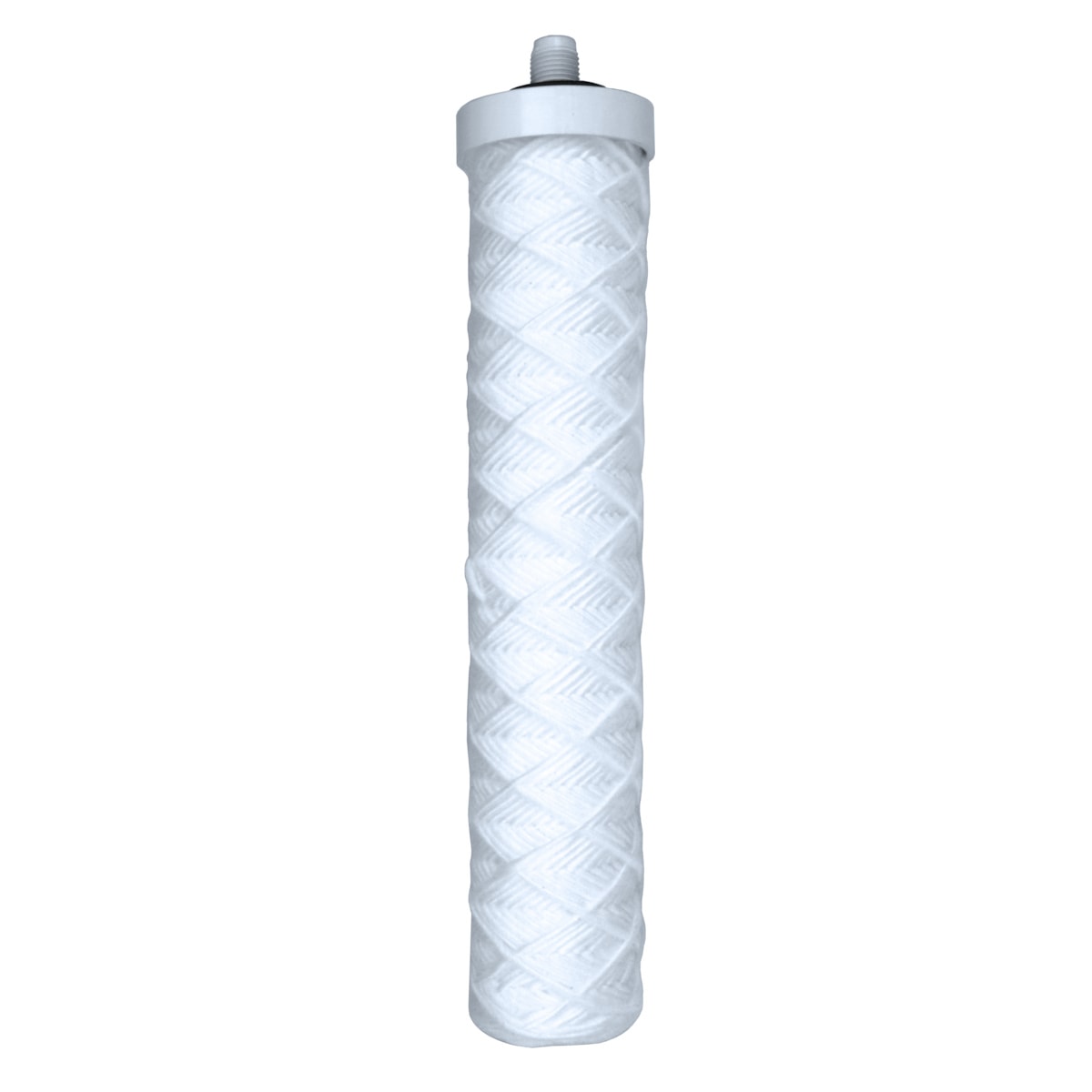

Aqua Cure Wound Polypropylene Filters - 10"
5 micron (nominal) wound polypropylene pre-filter cartridges for dirt / sediment removal. Designed to fit Aqua Cure Noryl housings.
Available with either a short or long mount.
| Name | Price | Availability | Qty |
|---|---|---|---|
Code ACV11
|
£14.93
|
Stock Warning
|
|
Code ACV11F
|
£14.65
|
Stock Warning
|
|
| Brand | Aqua Cure |
|---|---|
| Use | Sediment Filtration |
| Micron Rating | 5 |
| Flow Rate | 4.0 lpm / 1.05 gpm (US Gallons) |
| Filter Type | Wound |
| Max. Water Temp | 23°C / 74°F |
| Overall Dimensions | METRIC ACV11 - 280mm (l) x 54mm (dia) ACV11F - 269mm (l) x 54mm (dia) IMPERIAL ACV11 - 11.02" (l) x 2.13" (dia) ACV11F - 10.59" (l) x 2.13" (dia) |
| Filter / Cartridge Lifetime | The filter has no set capacity but should normally be replaced every 6 months. |
| Min. Water Temp | 1°C / 34°F |
| Min. Working Pressure | 0.5 bar / 7.5 psi |
| Max. Working Pressure | 8.75 bar / 125 psi |
| Box / Bag Quantity (For Bulk Buy) | 40 |
| Filter Length | 10" |
Product Description
Rated at 5 microns (nominal) for the removal of particulates. Do not use on water supplies of an unknown bacteriological quality.
Construction
Filter core: Polypropylene
Outlet cap: ABS plastic
Sealing washer: EPDM rubber
Filtration media: Wound polypropylene fibre
Core plug (lower): Polypropylene
