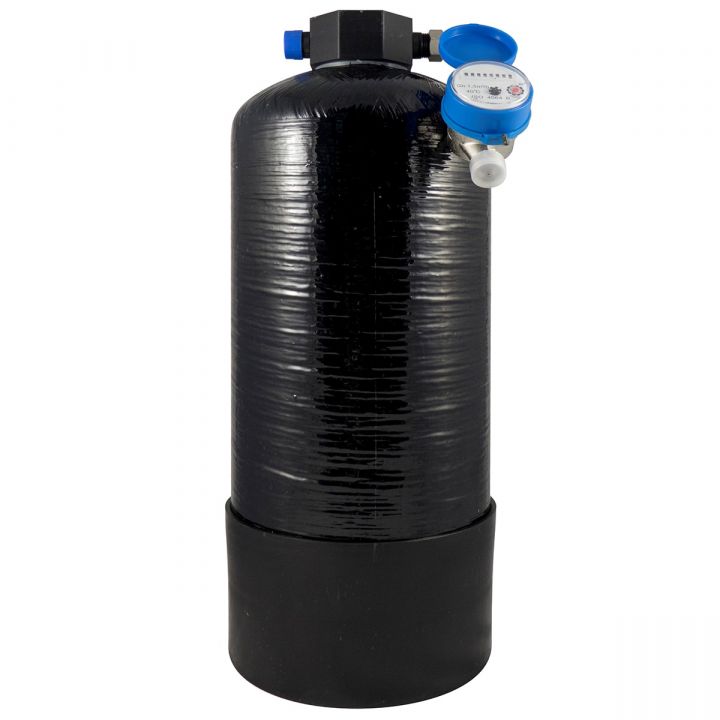

23 litre BanHard calcium treatment unit (CTU) which includes a water meter and stainless steel connection hose.

Unit has a capacity of 15,350 litres* and features an integral bypass and 3/4" BSP inlet / outlet connections.

Designed to reduce limescale and improve taste of incoming of incoming feed water.

Read more
Availability: Available to Order
£490.84 Inc. VAT



Brand Banhard
Use Taste & Odour Reduction, Scale Removal
Capacity 15,350 litres*
Min. Water Temp Protect From Freezing
Max. Water Temp 35°C / 95°F
Min. Working Pressure 1.5 bar / 22 psi
Max. Working Pressure 6.0 bar / 87 psi
Inlet / Outlet Size 3/4" BSP
Overall Dimensions METRIC

630mm (h) x 263mm (d)


24.80" (h) x 10.35" (dia)

Specification Notes *Capacity is based on a temporary water hardness level of 200ppm. Incoming feed alkalinity levels also affect overall capacity.

In the trade? Apply for a
trade account for big discounts

Product Description

BanHard calcium treatment units are designed to reduce limescale and improve the taste of incoming feed water. They are ideal for coffee machines, water boilers, combination ovens, vending equipment, baking overs and bulk brewers.

This 15,350 litre capacity* 2 port head model features a single inlet, single outlet and an integral bypass which allows a blend of untreated water to pass through, to improve taste, colour and odour, and increase capacity. Please note: % bypass varies according to pressure and flow rate.

The system doesn't mix carbon with the resin, which means the system can undergo regeneration, making the system more environmentally friendly. The carbon is located in the riser tube, which is the best place for polishing the water, giving maximum taste reduction.

Once a new BanHard CTU is purchased, regenerated units then become available, which are at a reduced cost compared to a new unit.
