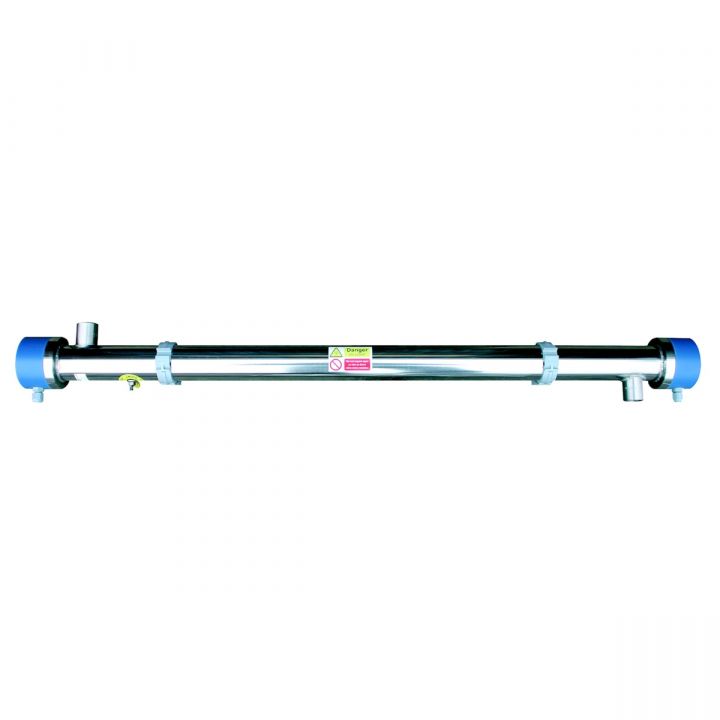

AC UV Steriliser System - 18 ltr/min - 3/4" BSP Female Ports
18 litres per minute* ACUV stainless steel UV disinfection system, which carries WRAS approval for use on drinking water systems.
|Overall Dimensions||METRIC Chamber - 960mm (l) x 120mm (w) x 90mm (d) Control Box - 350mm (l) x 60mm (w) x 60mm (d) IMPERIAL Chamber - 37.80" (l) x 4.72" (w) x 3.54" (d) Control Box - 13.78" (l) x 2.36" (w) x 2.36" (d)|
|Max. Working Pressure||10.0 bar / 145 psi|
|Box / Bag Quantity (For Bulk Buy)||1|
|Port Type||BSP Female|
|Max. Flow||18.0 lpm / 4.76 gpm (US Gallons)|
|Approvals & Certifications||WRAS Approved|
|Voltage||220-240 VAC, 50/60 Hz Single Phase|
|Lamp Power (Watts)||30|
|Chamber Construction||Stainless Steel|
|Control Box Construction||Epoxy Coated Mild Steel|
|Lamp Life||8760 Hours (1 Years Continuous Use)|
|Replacement Lamp Code/s||ACUV30|
High quality UV steriliser system with a host of features, including:
- WRAS approval
- Stainless steel chamber
- Epoxy coated mild steel control box
- 30 watt lamp
- Max. flow of 18 litres/min
- 3/4" BSP female inlet and outlet
- Long life / high reliability UV lamp
- Robust design
Please note that UV steriliser systems only kill bacteria in water and should be used in conjunction with other water treatment systems. They should be incorporated into a system comprising the appropriate water filters to remove particles and to treat the water to make it palatable.
If you require any advice, please don't hesitate to get in touch with our highly trained staff who can advise on the appropriate system to meet your specific requirements.
*UV systems have a stated flow rate based on feedwater transmission of 95%. On single pass applications (including drinking water) where the water clarity is less than stated, or the potential flow rate could exceed the recommended maximum flow rate, the installer should fit a suitable flow regulator.
